EC Fan technology
What is EC technology?
Electronically Commutated (EC) fan is a fan with a permanent magnet motor. EC motors are more efficient than AC motors. EC fans with integrated commutation electronics offer a high efficiency across entire speed range, optimum noise characteristics with minimum installation complexity and overall unmatched cost-effectiveness.
EC upgrade?
By simply switching the current fans to variable EC fans in chillers, AHUs and FCUs, we do not need a complete retrofit or replacement of a system to maximize performance, reduce energy consumption and maintenance costs. Lower energy consumption, better efficiency, lesser noise can be achieved with EC fans.
EC Fan Benefits
- Maximize performance
- Reduce energy consumption
- Reduce maintenance costs
EC upgrade as easy as 1-2-3
A site survey of client’s existing equipment to see what are the systems currently in use and understand what client would like to achieve.
Client’s requirements will be considered in more detail. Estimations of the potential cost savings and payback period will be assessed.
Following a successful assessment, client will have all the information needed to implement a site-wide upgrade.

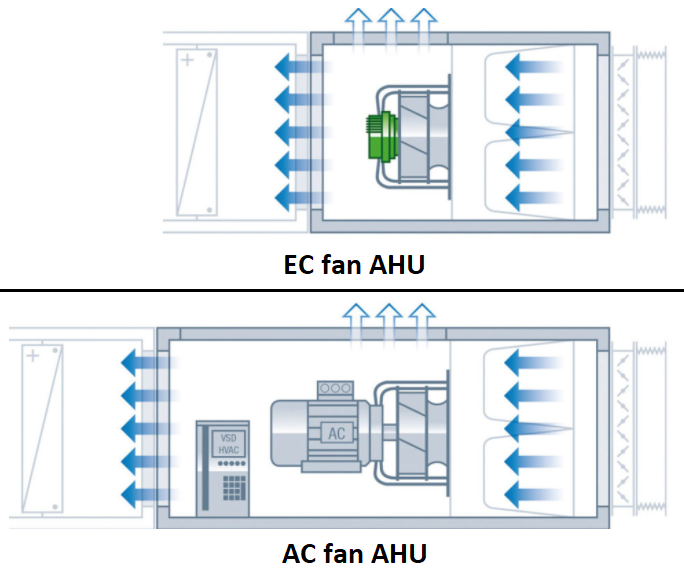

EC fan AHU vs AC fan AHU
EC fan AHU consumed smaller space than AC fan AHU
EC fan grid AHU exhibits uniform flow through heat exchanger
